■GM型－高真空(压力)隔膜阀 ■GM型高真空(压力)隔膜阀用于接通或切断真空(压力)系统管路中的介质流。应用于真空、乳制品、酒业、生物工程、食品、制药、饮料、化妆品及化工领域。■GMHigh Vacuum(Pressure)Diaphragm Valve ■GM high vacuum(pressure)diaphragm valve is used
| ■GM型－高真空(压力)隔膜阀 ■GM型高真空(压力)隔膜阀用于接通或切断真空(压力)系统管路中的介质流。应用于真空、乳制品、酒业、生物工程、食品、制药、饮料、化妆品及化工领域。 | |
| ■GMHigh Vacuum(Pressure)Diaphragm Valve ■GM high vacuum(pressure)diaphragm valve is used to put through or cut off the medium flow in vacuum(pressure)pipeline in the areas of vacuum, dairy products, breweries, biological engineering, foodstuff, pharmaceuticals, drinks, cosmetics and chemicals. | |
| ■主要技术性能Main Technical Performance ■■■ 阀门漏率：Valve Leak Rate ≤1.3×10-4Pa.L/S. 适用温度：Applicable Temperature -25～+80℃(丁腈橡胶) -30～+150℃(氟橡胶) 适用范围：Applicability 连接型式 Loose Flange 使用压力范围(Pa) 活套法兰(GB6070、JB919) 0.6×106～1.3×10-4 焊接法兰(GB6070、JB919) 1.6×106～1.3×10-4 快卸法兰(GB4982) 0.1×106～1.3×10-4 螺纹连接 Threaded Connection 1.6×106～1.3×10-4 也可按用户要求的连接标准加工 | |
| ■主要零件材料Materials of Main Parts ■■阀体、阀板、阀杆：不锈钢隔膜：硅橡胶、氟橡胶Body, disc and stem: stainless steelDiaphragm: silicon rubber, Viton | |
| CONSTRUCTION FIGHTS(mm) | |

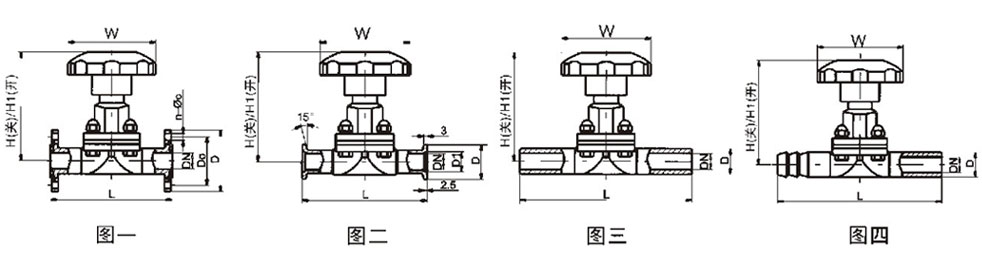

| ■外形及连接尺寸(mm)Overall and Connection Dimensions(mm) | |
 | |
| ■活套法兰连接(GB6070)(图一) Model型号DNDoDn-φcWH/H1LGM-101040554-φ6.66589/9975GM-161645604-φ6.68089/99108GM-202050654-φ6.68091/102118GM-252555704-φ6.680110/123120GM-323270904-φ980129/138146GM-4040801004-φ9120139/159150GM-5050901104-φ9120159/186180 | ■快卸法兰连接(GB4982)(图二) Model型号DND1DWH/H1LGM-101012.2306589/9975GM-161617.2308089/99108GM-202026.2408091/102118GM-252526.24080110/123120GM-323234.25580129/138146GM-404041.255120139/159150GM-505052.275120159/186180 |
| ■I型焊接管连接(图三) Model型号DNDWH/H1LGM-1010176589/9975GM-25253280110/123120GM-404045120139/159150GM-505057120159/186180 | ■II型焊接管连接(图四) Model型号DNDWH/H1LGM-1010176589/9975GM-25253280110/123120GM-404045120139/159150GM-505057120159/186180 |
